My hobby projects

Note. You are freely use the codes on this page. Please report bug or problem to me by this email.

Back to my page http://www.jnutthailand.com

Link to page SD/MMC by J.nut and Link to Timmer

Update My protel Lib ,,, use for protel99SE And STM32 LIB Last update Nov 10,2010

Jan 12,2012 8x8x8 Cube LED

http://jnutthailand.com/cubeled.html

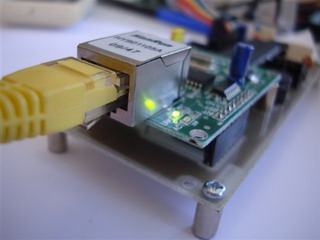

Dec 17,2011 ATEMGA32 Web server

http://www.jnutthailand.com/webserver.html

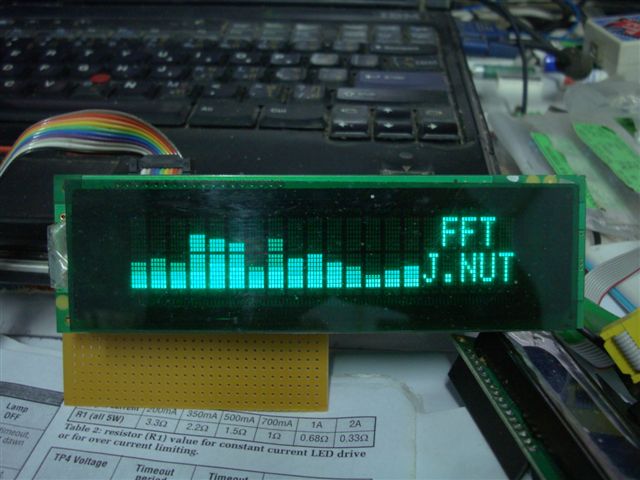

Nov 15,2011 AVR FFT Finsh

http://www.jnutthailand.com/FFT.html

Aug 14,2011 Timer (New Version) http://www.jnutthailand.com/timmer.html

Aug 10,2011 CG-Ram on LCD http://www.youtube.com/watch?v=7ot4OEqZwlc , http://www.youtube.com/watch?v=XncbJjwM-Ag&NR=1

Aug 4,2011 Seven Segment 4 Digit http://www.youtube.com/watch?v=B4NuWerNTUk

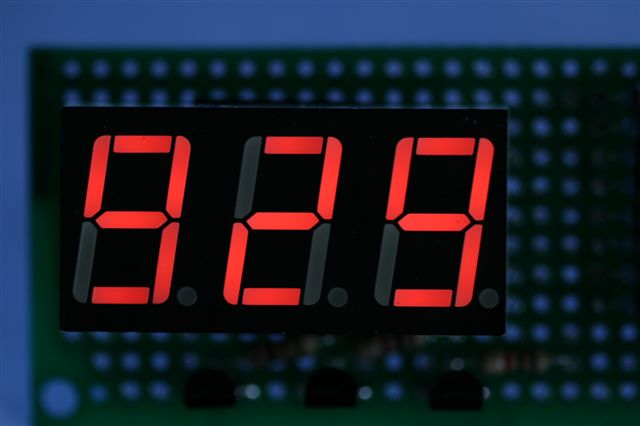

Sep 18,2011 Big Seven Segment http://www.jnutthailand.com/seven.html

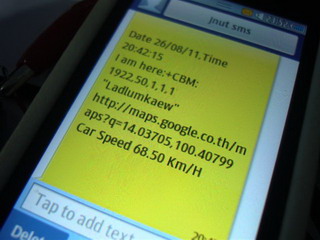

Aug 26,2011 If you would like to know about your "GIG", Where is him? Easy for find

http://www.jnutthailand.com/searchgig.html

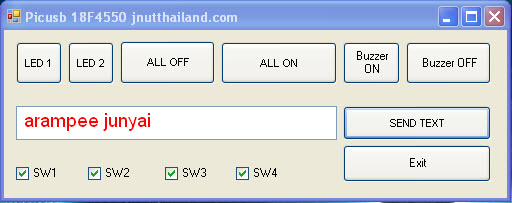

Aug 20,2011 PIC18F4550 + USB 2.0

http://www.jnutthailand.com/4550.html

http://jnutthailand.blogspot.com/

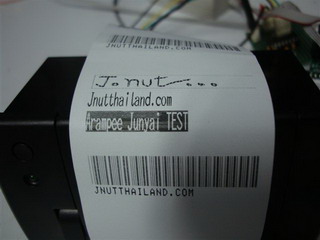

July 22,2011 Fujitsu Thermal Printer FPT-627DSL

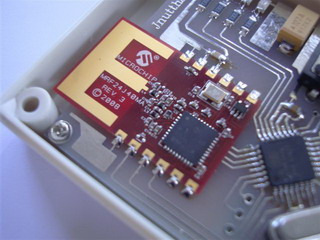

June 9,2011 MJRF24J Wirless

June 4,2011 Easy For Thermal Printer

Link Thermal Printer

Jnue 2,2011 ATMEGA32 AVR Programmer without Computer

Link http://www.jnutthailand.com/avrprog.html

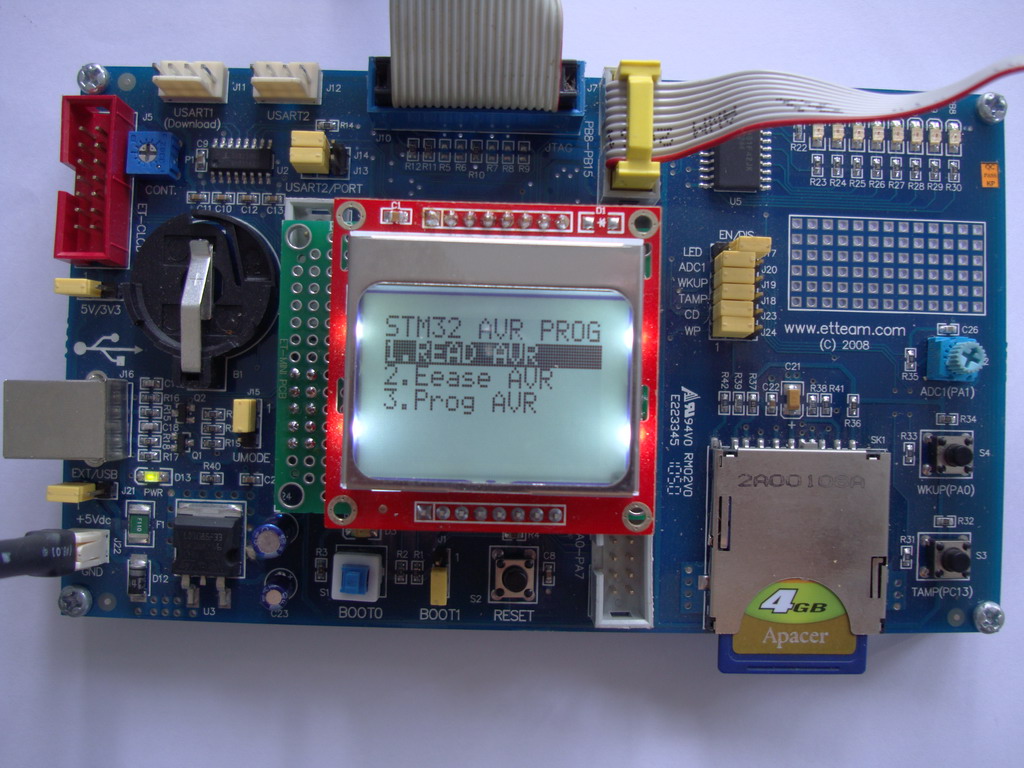

May 29, 2011 STM32 - AVR Programmer without Computer

my Video http://www.youtube.com/watch?v=VcLP1hNxWAU

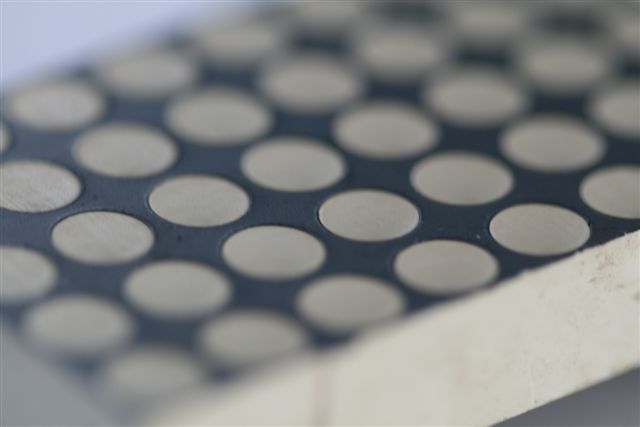

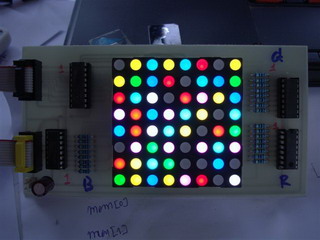

April 15,2011 (TRI LED DOT MAXTRIX)

http://www.youtube.com/watch?v=W6Jn3J6hMNI

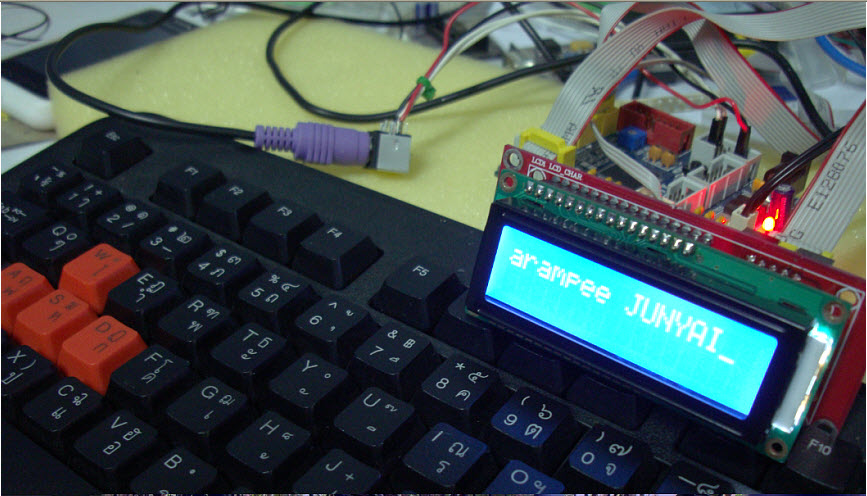

April 1, 2011 (ATMEGA128 + PS2 KEY BOARD Turn on/off LED indicator) and Finish with Thai charactor

dowload (without lcd) Code video http://www.youtube.com/watch?v=D100f64hiFI

infor: Connet CLK - PD0 and DATA - PD1 connect uart0 (9600,n,8,1)

March 13,2011 LPC1768 + FFT (Begin)

http://www.youtube.com/watch?v=c3U0TbtRuU8

http://www.youtube.com/watch?v=nLkOErjC3uE

Jan 17,2011 ATMEGA128 Graphic LCD 240128

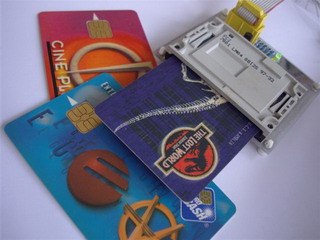

Jan 17,2011 ATMEGA128 + Smart card SLE4442 and SLE4428

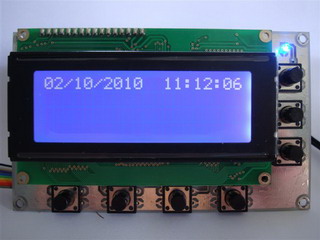

Dec 4,2010 ATMEGA128 + DS1307 Alarm Clock

http://jnutthailand.com/alarmclock.html

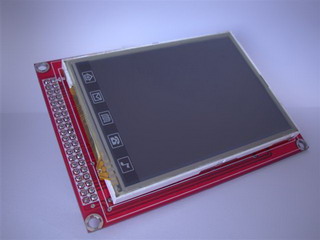

Oct 26,2010 make some application with TFT Touch Screen,

Oct 2,2010 I don't know about my project , But I know it are ATMEGA128 Data Logger

Sample Video http://www.youtube.com/watch?v=rGfmcGF4Kfg

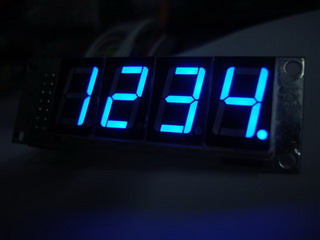

Sep 25,2010 Free For ALL (Style J.nut) Blue 7 Segment 4 Digit

Download file sch + PCB (Commond Anode) Download

Sep 25,2010 ATMEGA8 OBDII Version 2 Support Protocol KWP2000, ISO9141 , CAN BUS (MCP2551 Driver)

Sep 20,2010 ATMEGA32 SHT15 Humidity Data logger

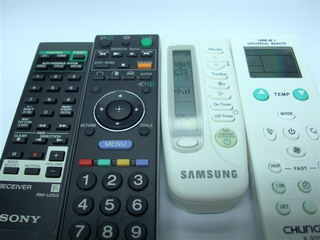

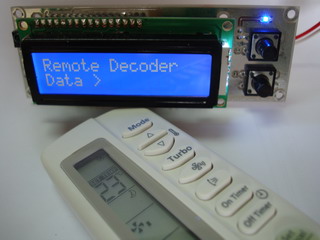

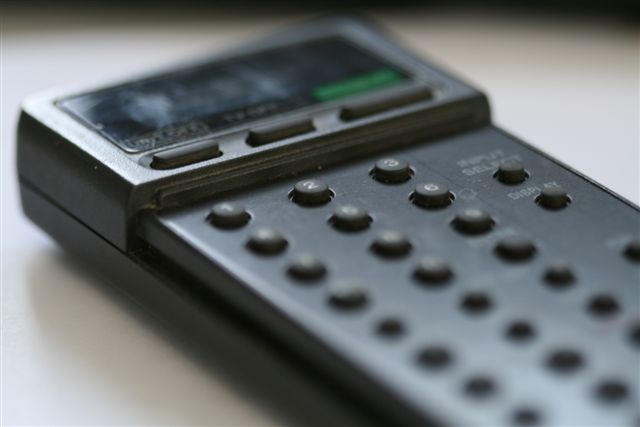

Sep 15 ATMEGA8 Remote Reader

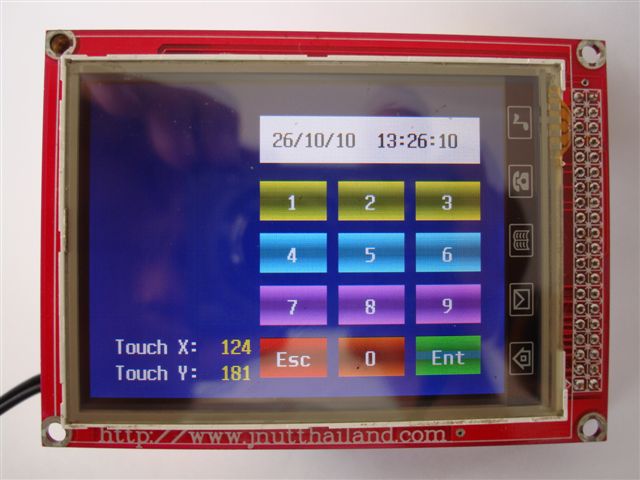

Sep 5,2010 ATMEGA128 + Touch Screen + RTC1307

http://www.jnutthailand.com/pcbjnut.html

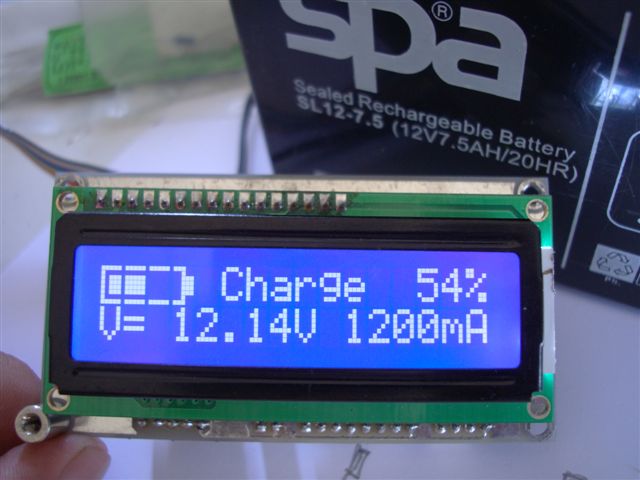

July 8,2010 Digital Control Battery Charger 12V 7A , 12V 1300mA and any type

http://www.youtube.com/watch?v=vsfCQ5pryZY

http://jnutthailand.com/battery.html

June 23,2010 GSM Module "SAGEM"

http://www.jnutthailand.com/sagemgsm.html

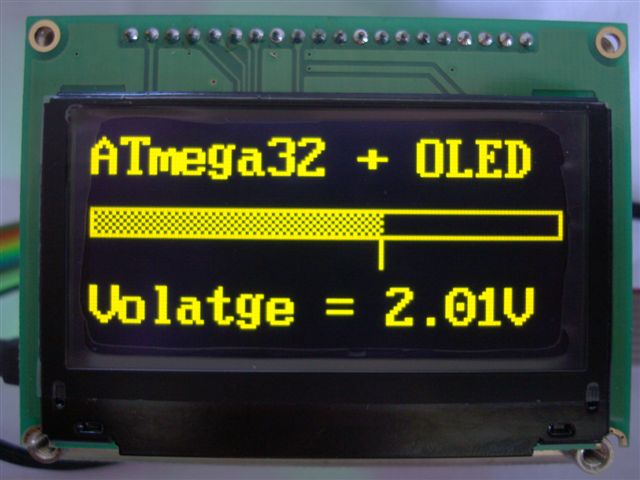

June 13,2010 ATMEGA32L + OLED 12864

....

Video http://www.youtube.com/watch?v=fttYzK7PYmM

May 27,2010 upgrade ATMEGA8 MP3 Support SDHC

http://www.jnutthailand.com/mp3mega8sdhc.html

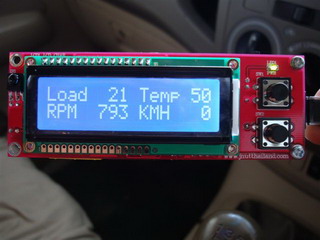

May 17,2010 Finish OBD II (ISO9141/ISO14230KWP2000)

http://www.jnutthailand.com/OBDII.html

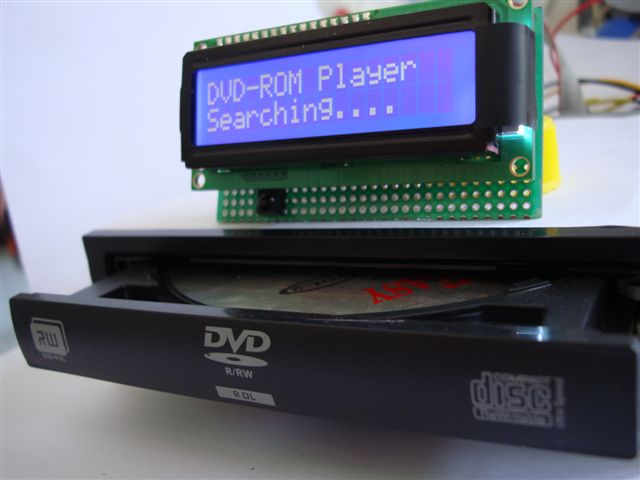

April 20,2010 ATMEGA32 + DVD-ROM Drive Audio CD-Player

http://jnutthailand.com/dvd.html

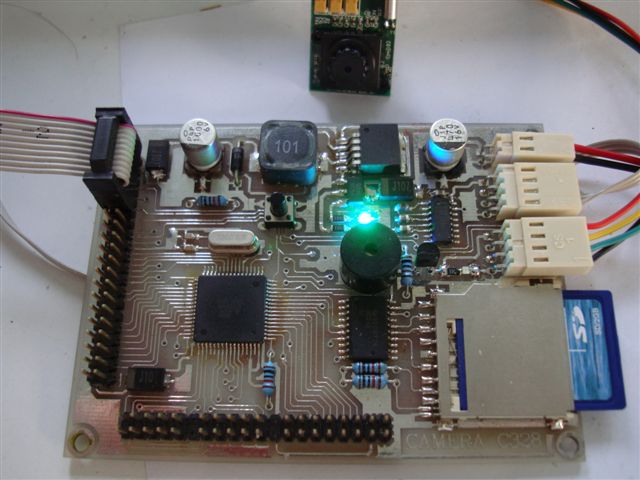

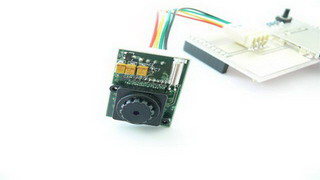

March 05,2010 Interface C328 Camera Module ,Take photo write to SD/MMC and Transfer to server by SIM300 GSM Module

Example picture from C328 click link for view

http://www.jnutthailand.com/thinkpad/C328/IMG003.JPG and http://www.jnutthailand.com/thinkpad/C328/IMG004.JPG

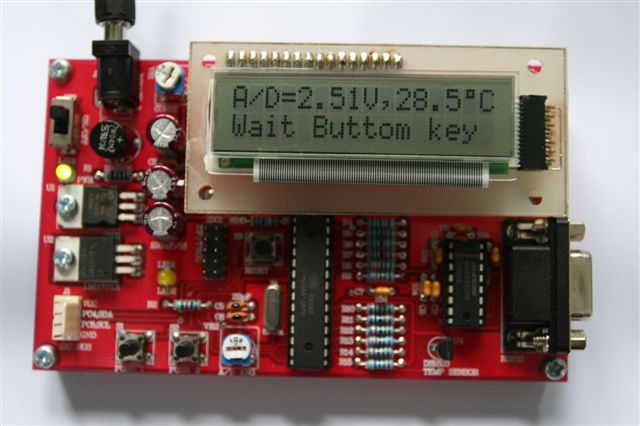

March 03,2009 LCD Application base on AVR Click Link http://www.jnutthailand.com/hobby/violetpcb.html

Finish Good Simple Data Logger for Temperature and Support SDHC

Feb 02,2009 "Vibration Sensor" and plot to LCD and Write to SD/MMC Data logger Every one Secound.

http://www.youtube.com/watch?v=_XpvbiMp_uo

Jan 06,2009 TFT Simple test

http://www.electoday.com/bbs/viewthread.php?tid=3355&extra=&page=4

Jan 02,2009 ATMEGA32 DTMF

and

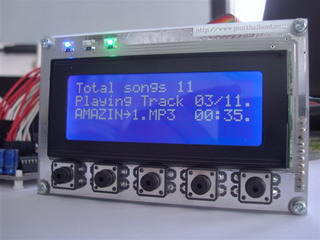

Dec 30,2009 MP3 Player + Key Board youtube http://www.youtube.com/watch?v=Zb9kby_YmPQ

Dec 29,2009 SD/MMC Board

Download File PCB (Note Open with Protel99SE or higher )

Dec 29,2009 ATMEGA128MP3

Youtube http://www.youtube.com/watch?v=WX6oEeQEpcQ

Dec 29,2009 PIC18F458 MP3

Source Code and File PCB Yourube http://www.youtube.com/watch?v=KlwWbLQO1xk

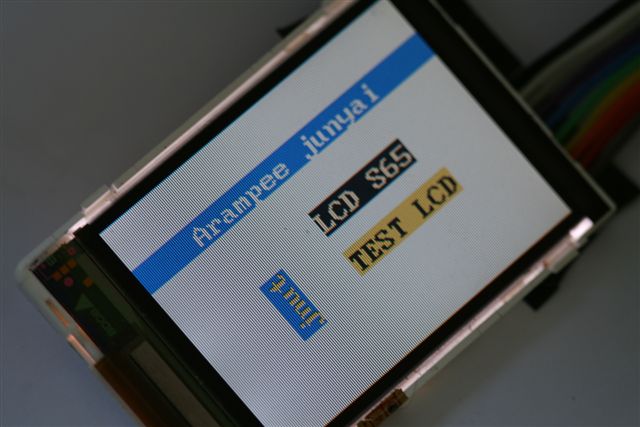

Nov 20,2009 STM32 + S65 LCD Display

Download Source Code

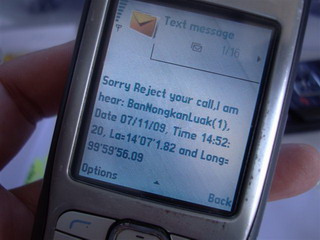

Nov 7,2009 Security Alert by GSM http://www.jnutthailand.com/gsm.html

Nov 3,2009 GPS offline link http://www.jnutthailand.com/gpsoffline.html

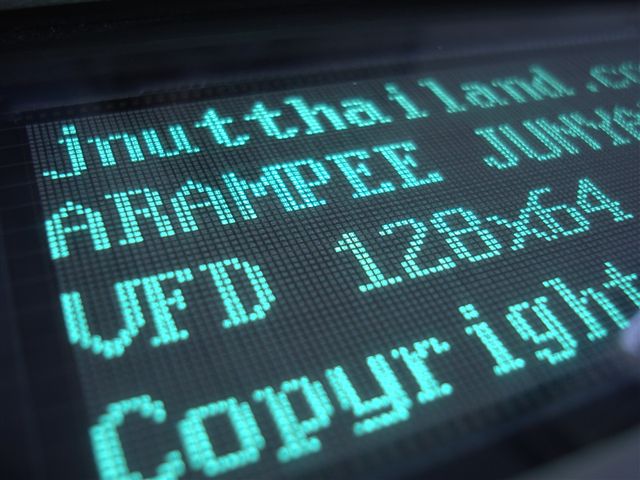

Oct 27,2009 VFD from Noritake GU-12864 -800A

Source Code

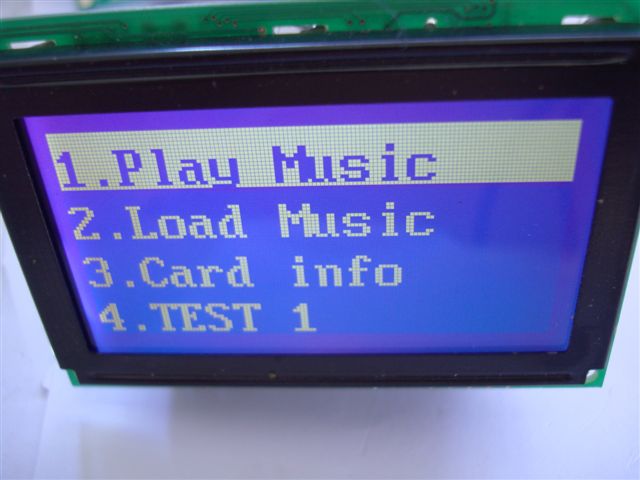

Oct 25,2009 LCD12864 Slide Bar Menu

Source Code

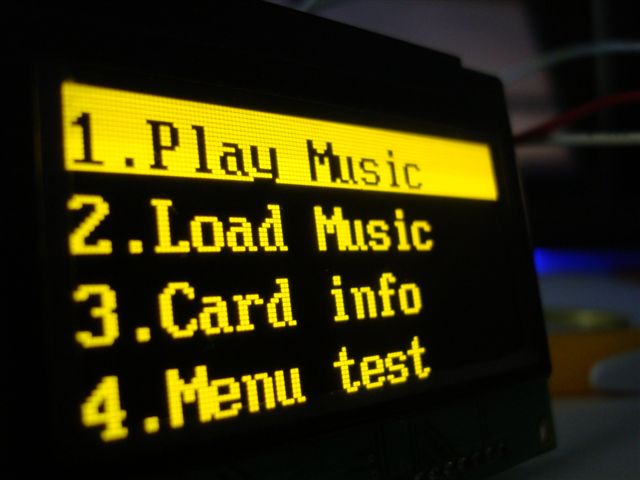

Oct 24,2009 OLED Menu Slide Bar Menu

Youtube http://www.youtube.com/watch?v=oIdtTREstjU download code Source code

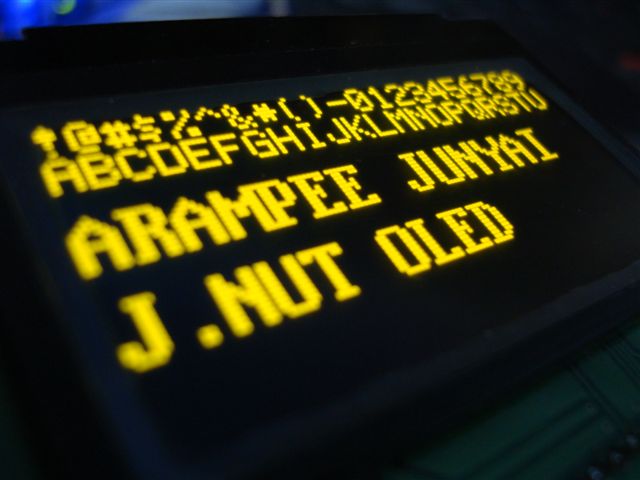

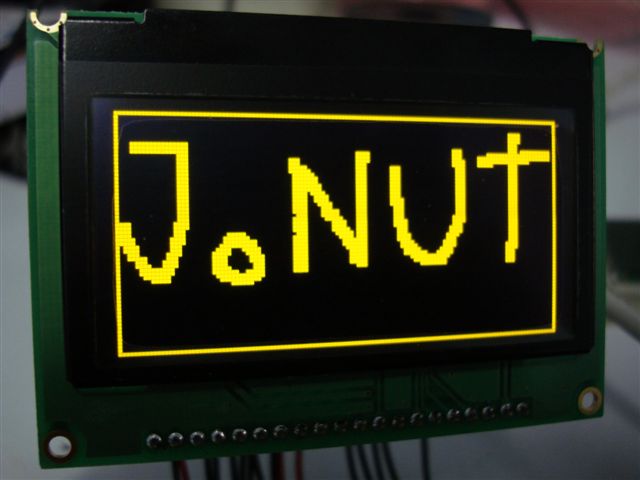

Oct 22,2009 OLED

OLED from http://www.bolymin.com.tw

My code

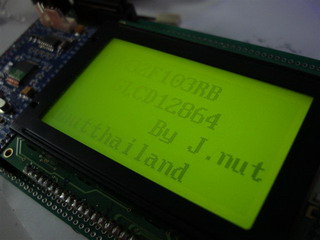

Oct 16,2009 STM32 GLCD12864

Source Code

Oct 9,2009 Basic touch screen on/off anything

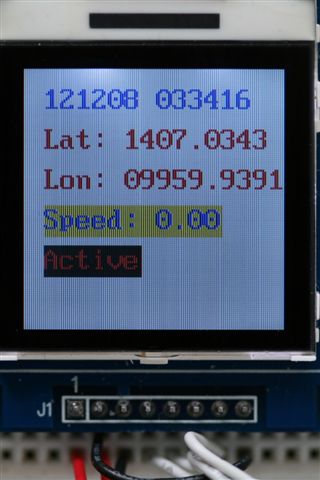

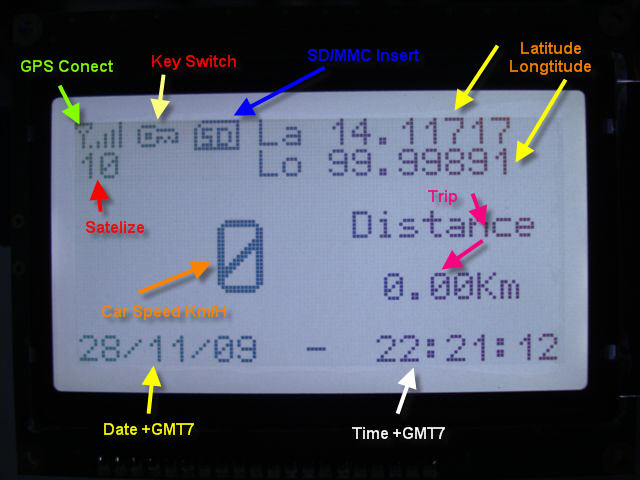

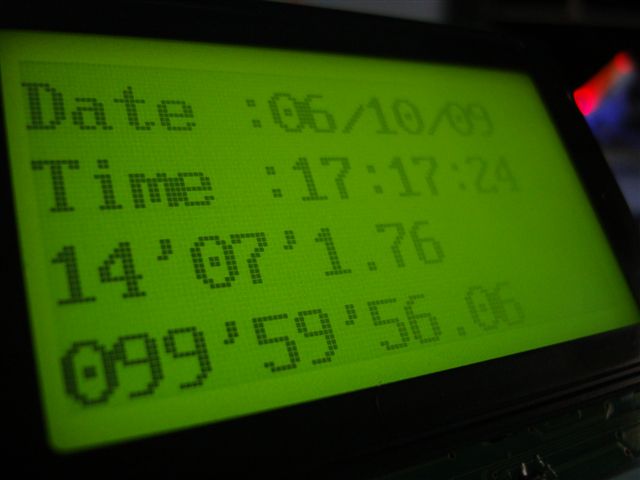

Oct 7,2009 GPS Data logger + SDMMC

Source Code

Font for LCD http://www.jnutthailand.com/ETODAY/12864/newfont_1.rar

GPS Display http://www.jnutthailand.com/ETODAY/12864/LCD12864V6.rar

File PCB http://www.jnutthailand.com/ETODAY/12864/G12864.rar

Sep 17,2009 STM32 Simple interface USB (HID)

Sep 4,2009 My Book "FAT base on SD/MMC" Avariable.

Sep 3,2009 Free Code Camera C328 + SD MMC on Aricle book Semiconductor 304

Dowload source code

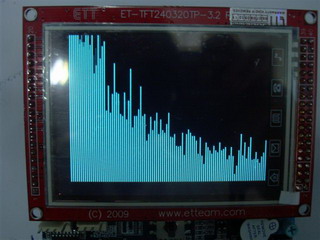

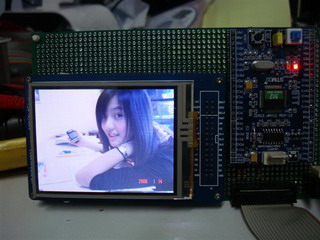

Aug 12,2009 STM32 Decode BMP and JPEG Display to LCD TFT

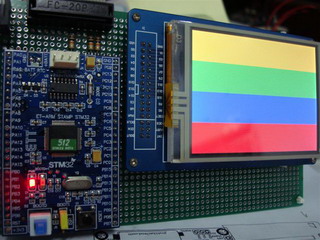

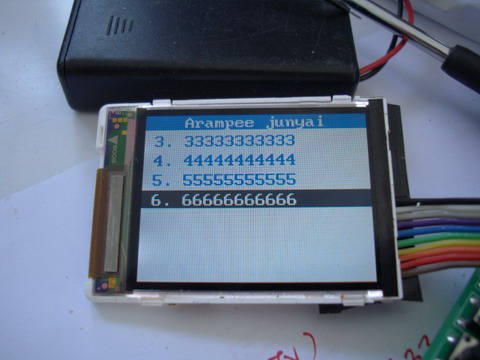

July 27,2009 STM32 + TFT Touchscreen

and

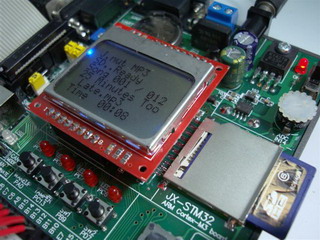

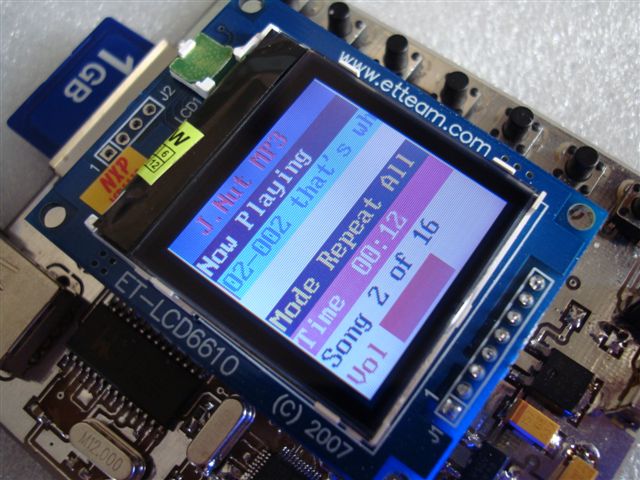

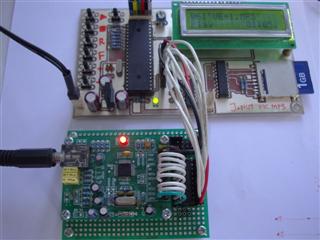

July 22,2009 STM32 +MP3 Player + Support SDHC link to video http://jnutthailand.com/mp3.html

I have 2 type from http://www.ett.co.th and http://www.inex.co.th

and

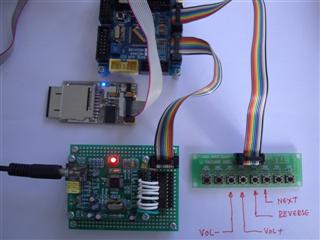

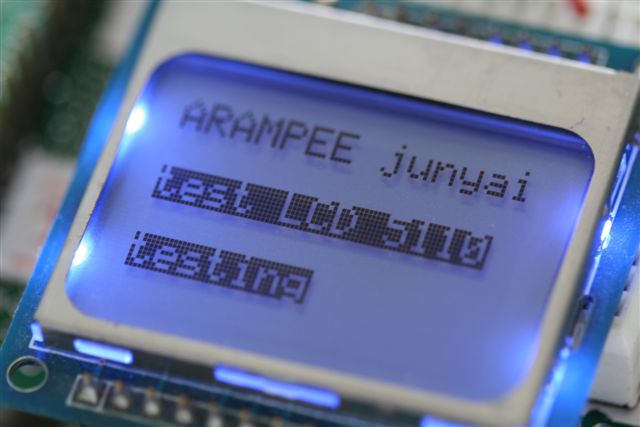

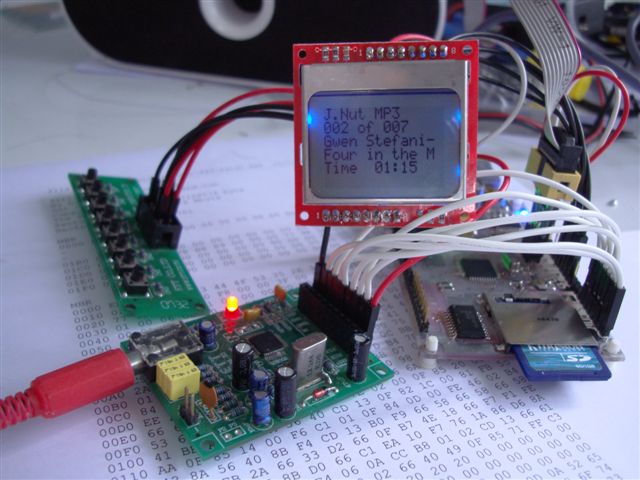

July 16,2009 ATMEGA32L + G5110 +VS1002D MP3 Supply long File name and SDHC

http://www.jnutthailand.com/mega32mp3.html

Jnly 9,2009 Beginer for FAT Base on SD/MMC Link

June 11,2009 LCD PSP interface with AVR ATMEGA128

June 10,2009 Timmer anything By J.nut

source http://www.jnutthailand.com/download/codeboom.rar

June 1,2009 Matrix 5*7

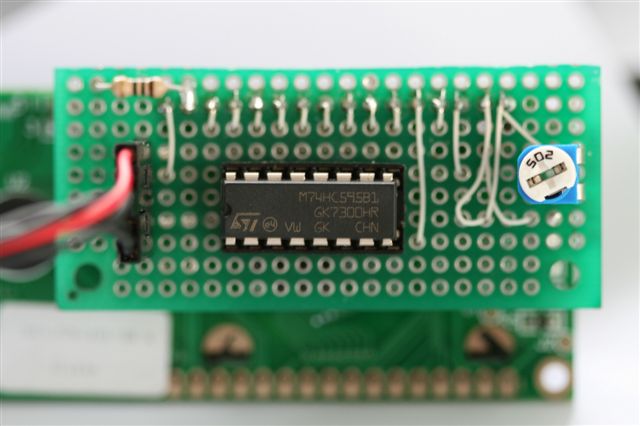

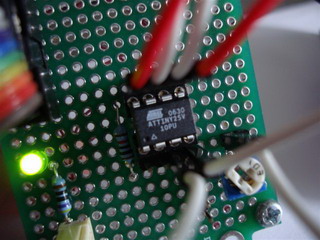

May 5,2009 ATtiny25 + ADC + 3 Bit LCD (HC595),,,


April 29,2009 MAMEGA8 + MP3 SD/MMC Final PCB

Download File PCB here http://www.jnutthailand.com/download/mega8mp3.rar

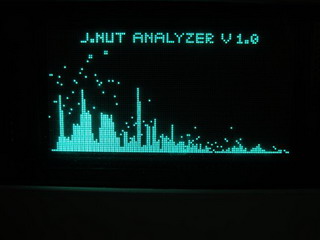

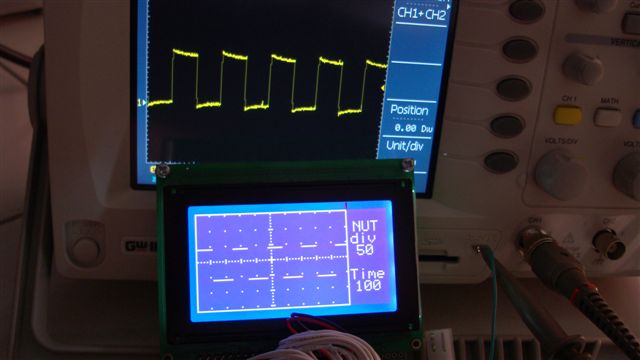

April 23,2009 ATMEGA128 + VFD Graphic LCD Logicanlyzier

and

April 19,2009 ATMEGA32 + IDE CDROM Drive Play Audio CD + Color LCD + Remote

link http://www.jnutthailand.com/idecdrom.html

April 16,2009 (Graphic LCD 12864 + Timmer)

April 16,2009 Graphic LCD 12864 and OLED 12864

Update April 7,2009 ATMEGA8 SD/MMC MP3

Upate April 5,2009 Touch screen

and link to some picture http://www.jnutthailand.com/touchjnut.html

Updata March 27,2009,, Touch screen from ThaiEasy http://www.thaieasyelec.com

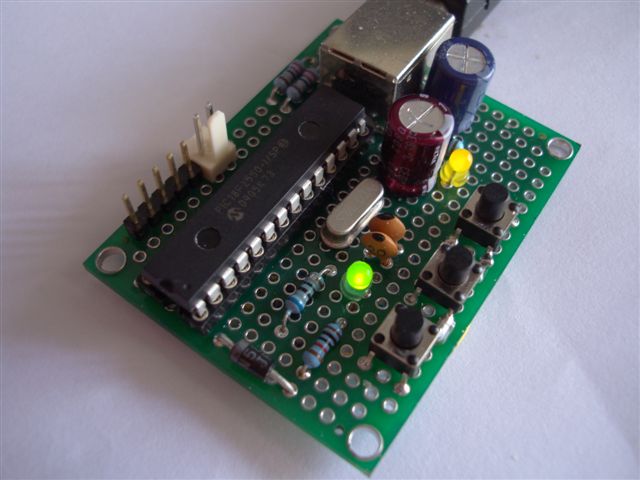

Update March 20,2009 PIC18F2550 + Key Swicth

Update March 14,2009 FM + Color LCD

Update March 3,2009 "FM Receiver Module AR1000", The code not complete ,,, as soon as posible update

Update Feb 20,200 9 Easy 168 + MP3 Player Low cost

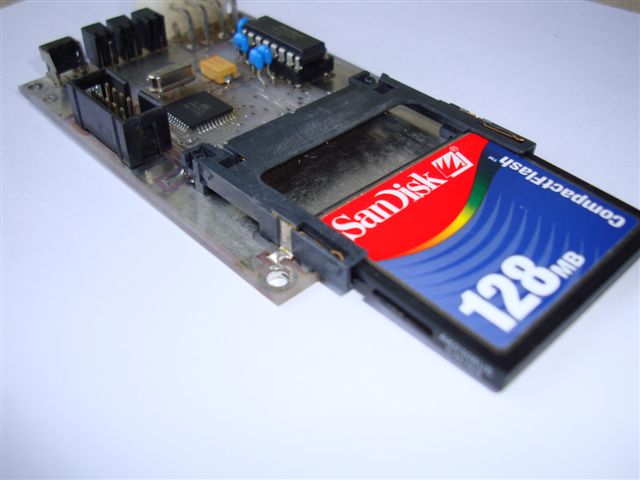

FEb 19,2009 Begin MP3 wirh CF card ,,,,

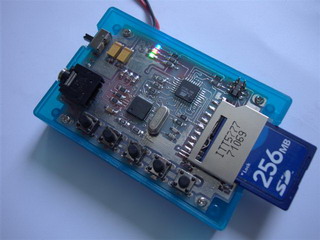

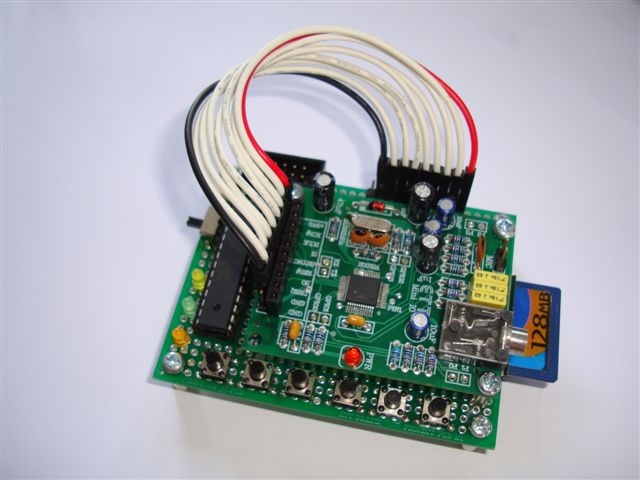

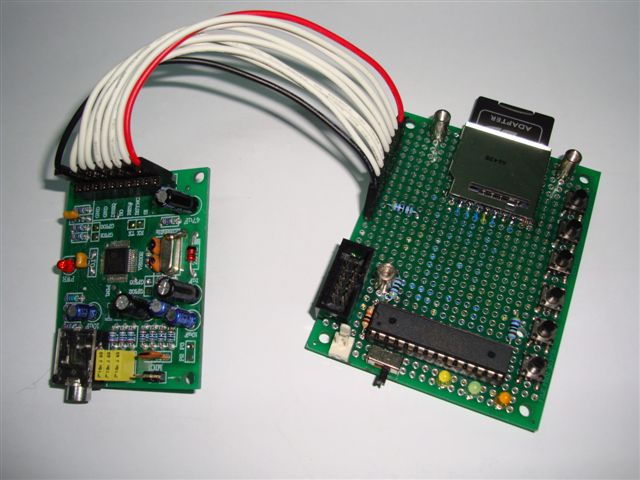

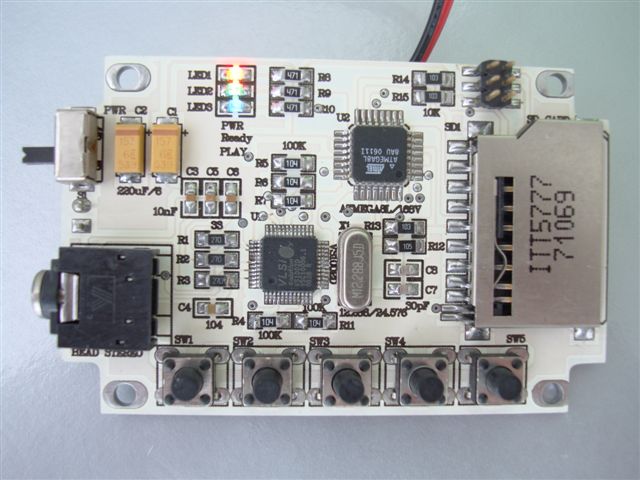

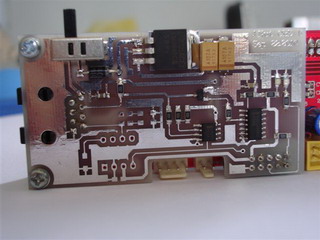

Feb 19,2009 Reduce ATMEGA8 +VS1002D + SD/MMC (FAT16/32) Support Directory Folder, Operate by Battery 3 Volt

Low Cost and Low Power. 3 Molde for play (Repeat One , Repeat all and Random Play)

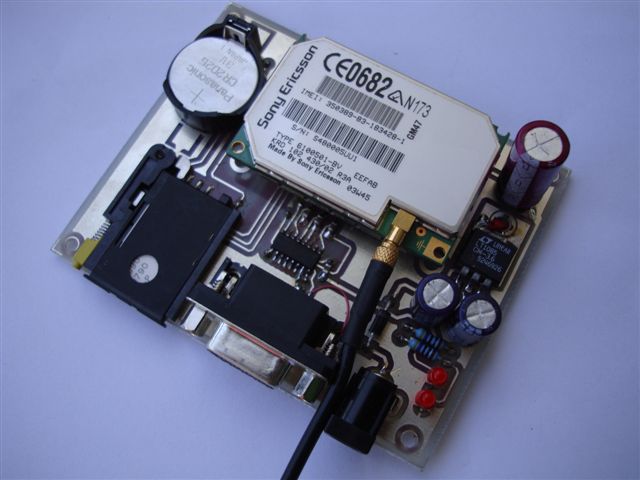

Update Feb 16,2009 GM/GR47 GSM modem,,,,,,,,(no application now)

GSM module from sony erricson,,, Now I no idea for any application

with GSM

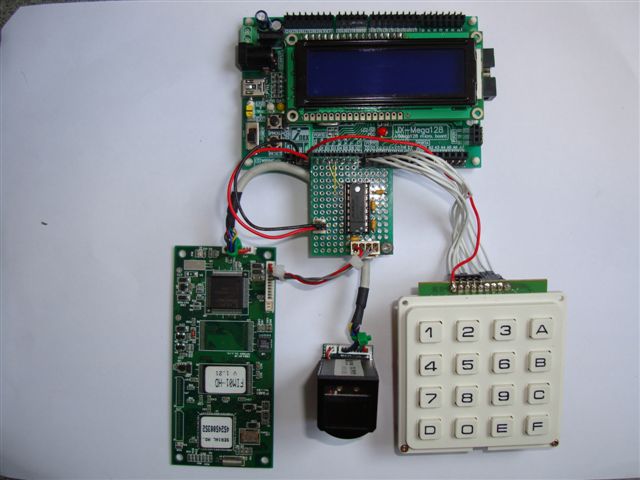

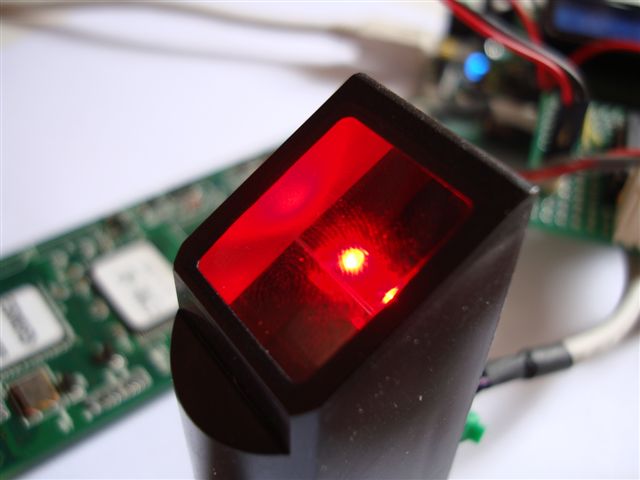

Update Feb 15,2009 JX-MEGA128 + FIM01 Finger Print (Application Access Control)

for my idea, if you need to access your car or your room with your finger.

wow....very nice

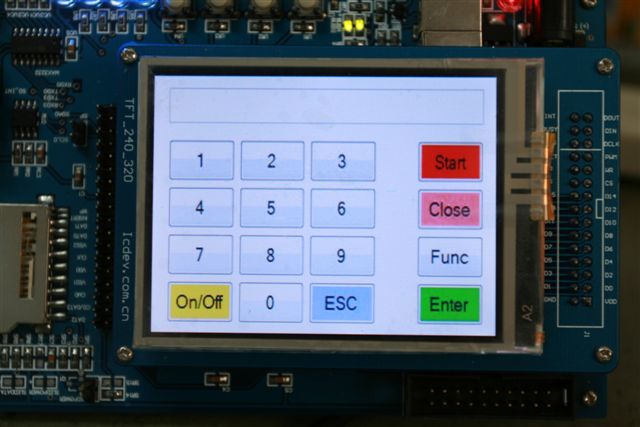

Update Feb 11, 2009 Touch screen TFT 320 * 240 + LPC2376x

Product of my friend www.icdev.com.cn

I think very nice..

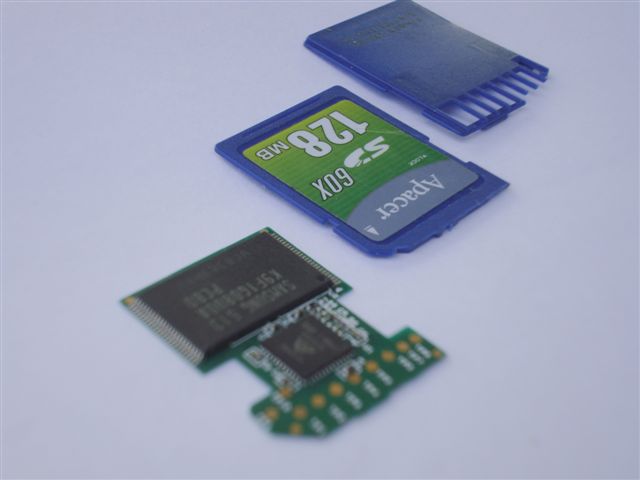

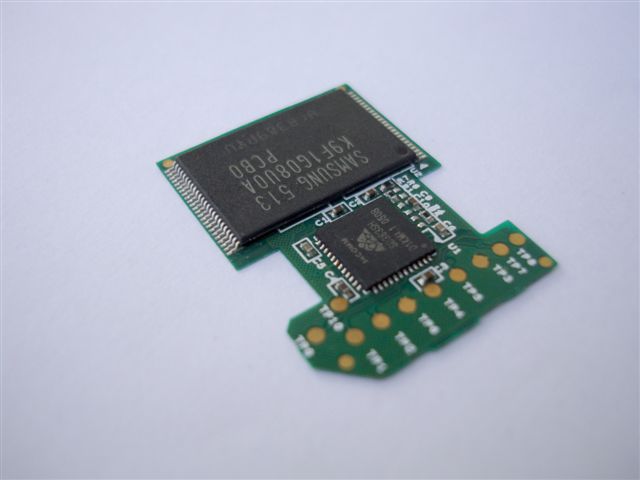

Feb 7,2009 Split SD/MMC

Today, I am split SD/MMC... Oh,,,, nice to looking

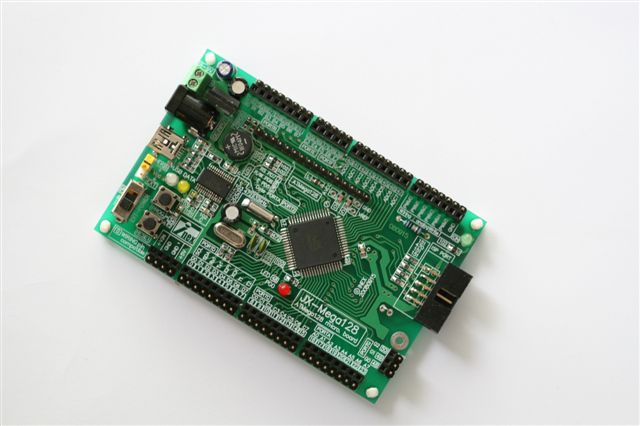

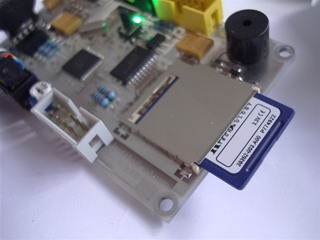

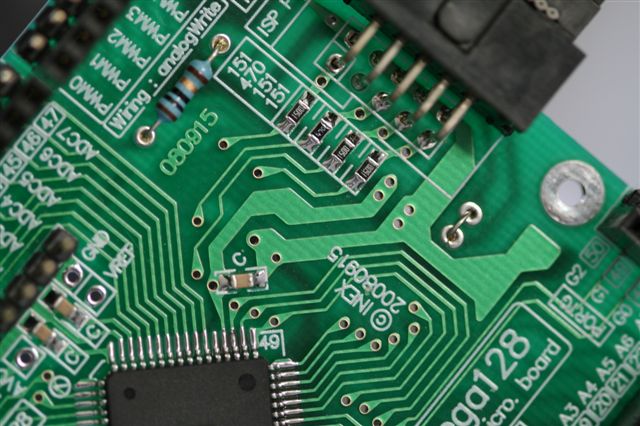

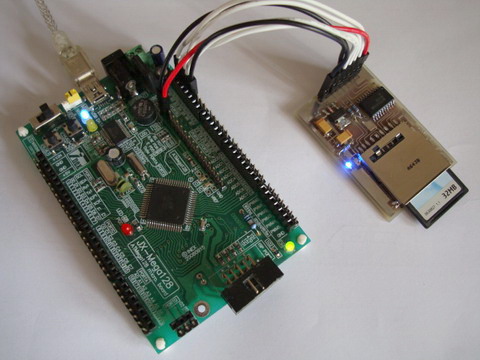

Feb 4,2009 JX-MEGA128 + SD Expand

Example 1 for init_SD/MMC and get capacity of card

Download code for study here

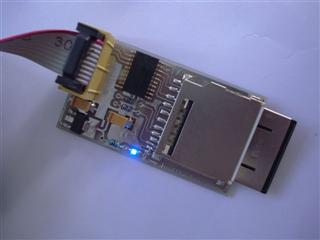

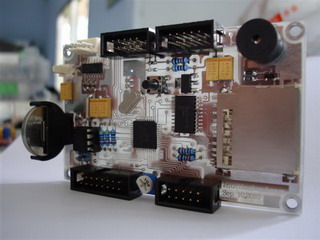

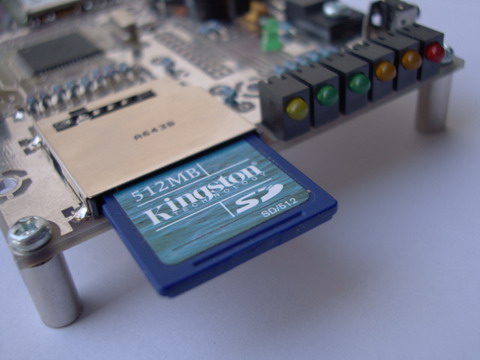

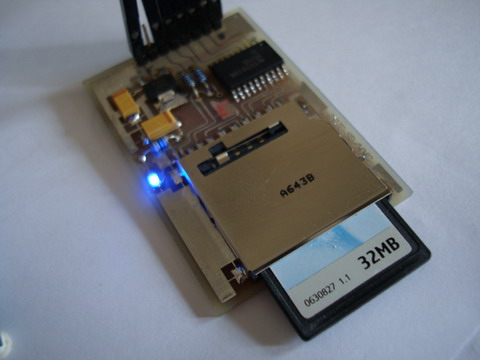

Feb 3,2009 SD/MMC Expand to ALL

This board are SD/MMC Slot ,, I am provide

with mcu all Type, Many many time,

You need to study interface SD/MMC

with microcontroller. I think you

have big problem with MCU 5 Volt.

Because SD/MMC only use 3.3 Volt

For my design, Can be use with microcontroller all type i mean 5 volt and 3.3 volt. for 3.3 it no problem. But some

time you need to interface with 5 volt, Just to decreate level voltagte from 5 volt to 3.3 volt.On circuit I have chip

74LVC245for decrease voltage.I am share for all. please load my circuit and make pcb with your self or send to

pcb shop. "My files could you please open by protel99SE or higher tools" .

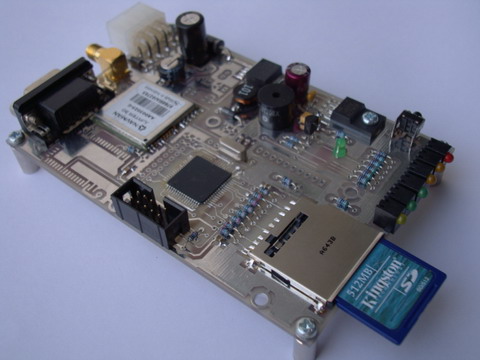

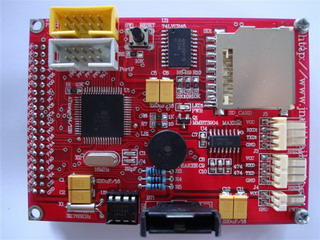

Feb 3,2009 SD/MMC + GPS + Bluetooth + SMS all in one for security on your car

Now, If you need to find some application for protect your car. Many many time,, after your car parking any where,

WOW ,,, You have to be apprehensive. For my idea,, May be help you. For My application are GPS Data logger

via SD/MMC and check status your car. if youcard have alert. it will be send message via GSM module to your

mobile.And On PCB you can put Bluetooth Device for connect to map on your PDA or your mobile.....i think very

nice for you (sorry as soon as posible update more)

Feb 3,2009 USB/MMC MP3 Player

USB SD/MMC MP3/Player

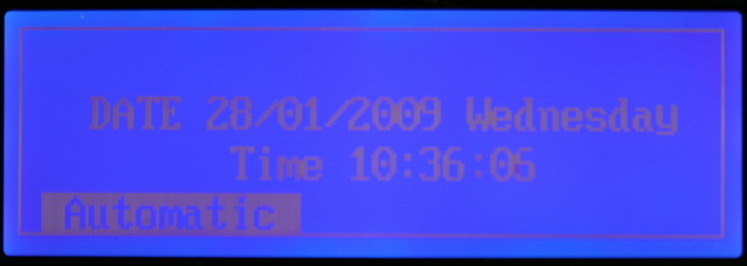

January 27, 2009

Update source code Article January 2009,

"Timmer 8 channel"

link to web timmer

Happy new year,, No update ,,,,

Update Dec 26,2008 MP3 (USB or SD/MMC) I have 2 choice for play,, you can play by USB Drive or SD/MMC

Update Dec 25,2008 MP3 Media (SD/MMC, USB Drive)

Code not finish now

see Video

Update Dec 23,2008 OLED from (ES http://www.es.co.th from thailand and http://www.bolymin.com.tw)

For This OLED it perfect good . if you need to interface with ARM

it OK. But for other MCU, just to use VCC at 3.3 Volt

Download source code for test

For This OLED can be adjust contrast by softwar 256 step

Update Dec 21,2008 look at for Thai language Click

Procedure below are how to make the library file that protected your sourcecode.

For example, I would like to convert the lcd.c function to lcd.lib file for using with the INEX's JX-Mega128 board.
Example Here (link to "Full Code.rar") is a complete lcd.c source code. download for compare St1 and St2

St1. You can make the target library which protected your sorucecode. Any programmer can use your library full

features but do not know your sourcecode.This method is called "Making library file". Normally the makefile

method will create the result file as .hex or .bin for downlaoding to MCU. But with same method you can create

the .LIB file. Please see the example code here.

# Target
TRG = lcdlib <---- create lib file name here (1)

# C-source files
LIBSRC = lcd.c add any files here xxx.c yyy.c (2)

all: $(TRG).lib <---- Target Output (3)

--------------------------------------------------------------------------------------

lcd.o : lcd.c lcd.h makefile (4)

ํyou can add more files here

xxx.o xxx.c xxx.h makefile

yyy.o yyy.c yyy.h makefile

St2.Create your main sourcecode following the example file below. You can add your .lib file into the main code.
In this example you add the lcdlib.lib into the main code. With this method above you an make the C file and

use your library without distribution your library soucecode. Anybody will see the .lib file but do not know your .c

or .h sourcecode.

# Target
TRG = main <--- Output for copy to flash MCU Output = main.hex (1)

# C-source files
SRC = serial.c printf.c $(TRG).c <---- Add any files here jnut.c inex.c (2)

# Libraries
LIB = lcdlib.lib <--- call Lib from step here (3)

#this defines the aims of the make process
all: $(TRG).elf $(TRG).hex <---- Target Output (4)

Thai language Click for look at more detail

With all step above, you can protect your library code and make any custom library for the special one or commercial.

Update Dec 21,2008 ATMEGA8 + RPM Meter. edit from JX-MEGA128. But I use ATMEGA8 + Crystal 8 MHz .PIN PB0 (ICP )

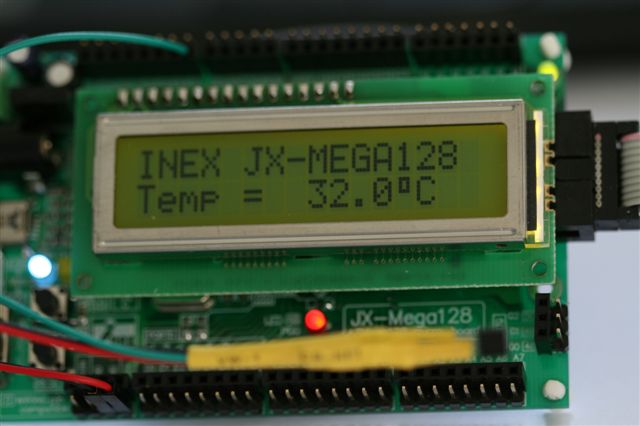

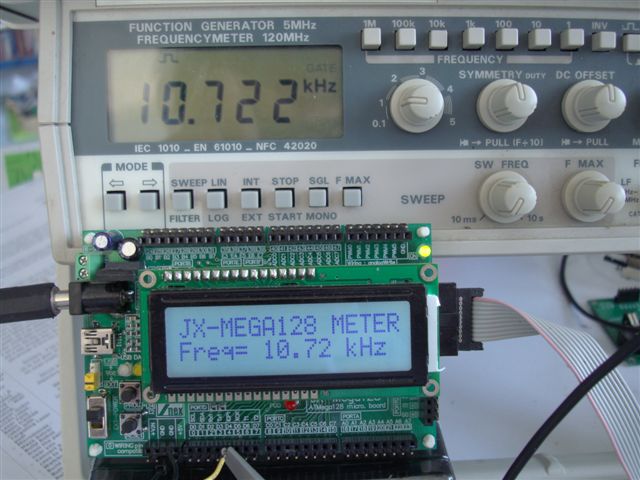

Update Dec 21,2008 JX-MEGA128 + Frequency meter mode ICP capture ,The rang about 1 Hz - 300 KHz ,(jnut test)

download code here . and conect signal from

signal generature (square ware < 5 volt) to PD4,

(ICP1)if you have some advise or any question,,

could you plese send your question to my email

See Video http://www.youtube.com/watch?v=GidvZZX3F20

(The Soundtrack is the Bird in my garden) and

http://www.youtube.com/watch?v=bz3CniOzB-o

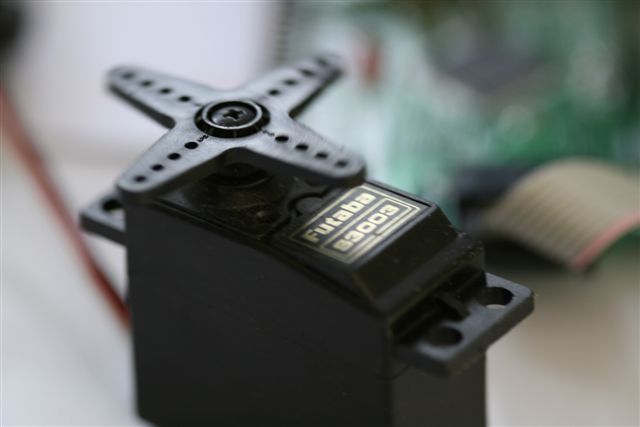

Update 20,2008 . Interface JX-128 from inex + Servo motor. The Example is servo turn Left and Turn Right .

if yo need to test, connect Gnd,VCC supply 5 Volt to

Servo motor, For Signal Control connect to PB5,

(PWM5) Turn left and if you need to test for turn right,,,

Connect to PB6 (PWM4)

http://www.youtube.com/watch?v=2L4GGhLV9ag

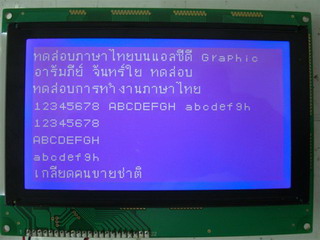

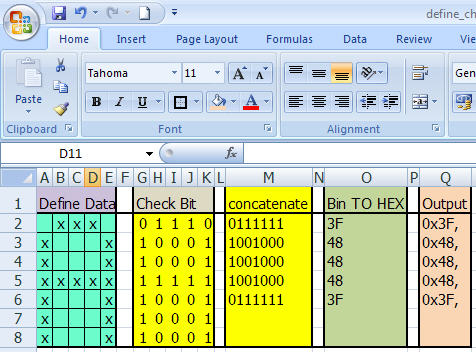

Update 19,2008 ,"How to make thai font on LCD..". I use tool from excel, If you need to know "How to make" open excel file and see

my idea , Sheet 1 mark dot, Sheet 2 check bit and sheet 3 gen code. download my file

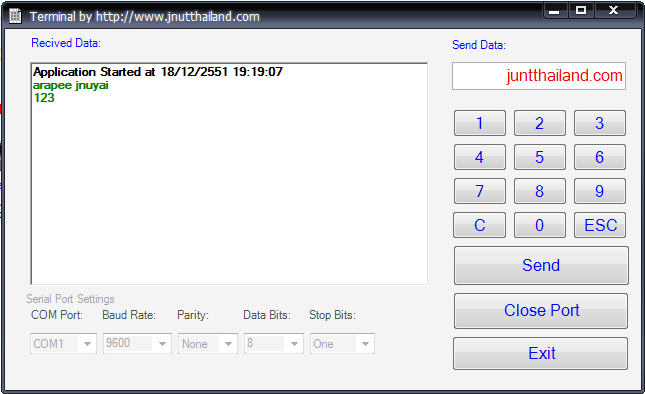

Update 18,2008 (Today My Birthday) The Application are serial Port Communication between host and other

After already to download, if The application can't operate... please download file framwork.net. This application

writed by VC#2005, Donwload exe for test.

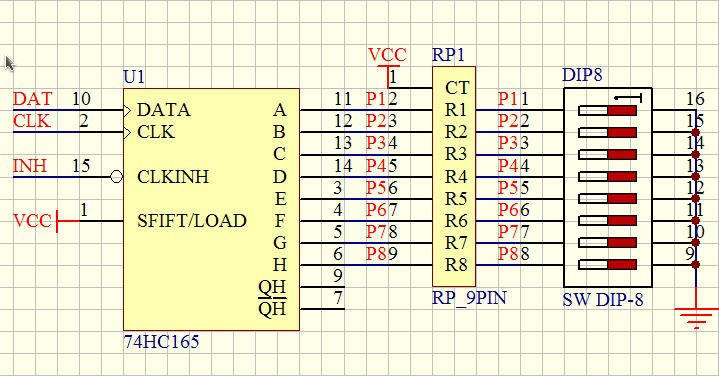

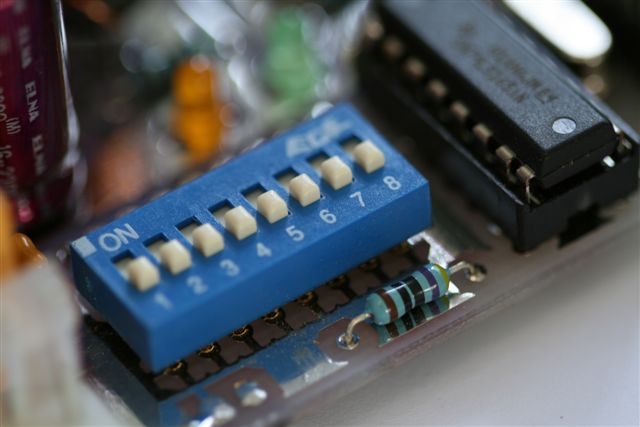

Update Dec 17,2008 Read DIP-Switch 8 with 74LS165 Download Code

Update Dec 17,2008 Remote Control Decode (Sony - TV) with ATMEGA Download code here

Uodate Dec 17,2008 MAX7219 + Maxtrix LED 5*7 with ATMEGA128

Download code here , and I you need to know about, "How to make image & font with tools on excel microsoft office.. Please see my example

on excel i use 3 function on exel Step1 = if(cell = "x", 1,0) and Step 2 concatenate(cell), Step 3 Function BIN2HEX(cell), if you have any

question, please send your question to my email

Update Dec 17,2008 LCD From Nokia 5110&3110 + ATMEGA128. DownLoad Code here

And If you need to order LCD ,, visite to

http://www.inex.co.th

Update Dec 13, 2007

Menu slide Bar on S65 + ATMEGA128, My Video http://www.youtube.com/watch?v=yl7gq08cfu4

Update Dec 12,2007 ATMEGA128 + S65 (Color LCD from siemense) , Download Code here

http://www.youtube.com/watch?v=8nxyRjG7Cj4

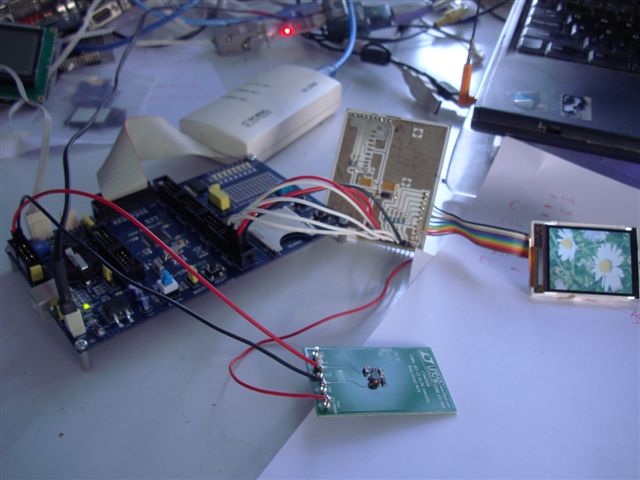

Update Dec 12,2008 GPS + COLOR LCD + ATMEGA128 , download Code here

Update Dec 12,2008 GPS + ATMEGA12 .Simple for Get $GPRMC

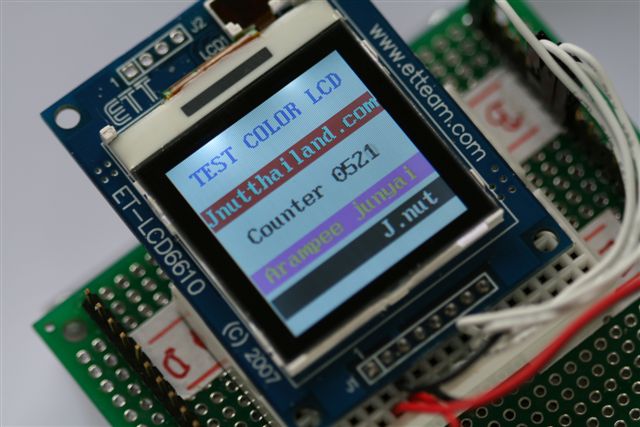

Update 11,2008, Color LCD + ATMEGA128 Interface Color LCD 6610,

Update Dec 9,2008vATMEGA128 + LCD 12864 Oscillsope, http://www.youtube.com/watch?v=nOS20AlvdMw

Update Dec 8,2008 .Intergace 7 Segment with AVR, using timmer for scan .download code here

Update Nov 30,2008.interface HD44870 + 74HC595 + AVR using 3 Bit.Download code here

Update Nov 27,2008 JX-ATMEGA128 from www.inex.co.th, Interface graphic LCD 128*64, thr application are slide bar menu, as soon as posible update source code , see in youtube http://www.youtube.com/watch?v=WOYvOhYyKBs

Today Nov 20,2008Education Board for Atmel ATMEGA8,,, as soon as posible update full project

And if you need to test,,, Download my code for test

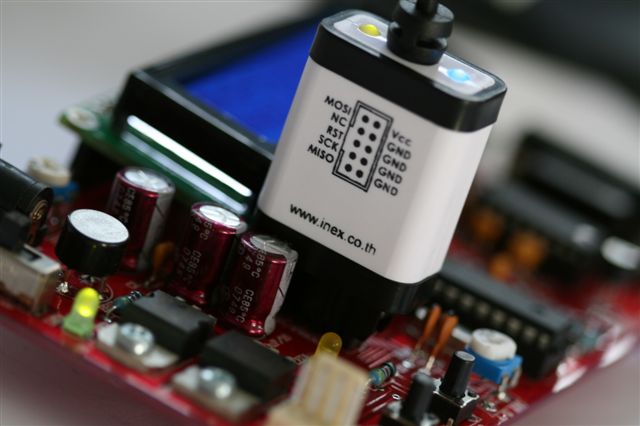

Tools from www.inex.co.th it are PX-4000.

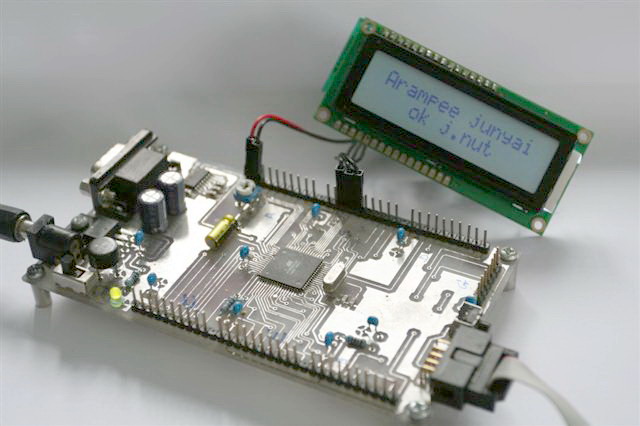

.Now I have board is product from inex model JX-MEGA128, if you need to order please to them. The Board it very simple to study. ATMEGA128 on Board expantion IO interface 50 port. include Charactor LCD 16*2 HD44870 chipset. if you need to see data sheet please download from website

On board builtin standard LCD 16*2 standard. But on Board, can't use lcd Blacklight, I put resistor 10 Ohm 1/4 walt and wireing vcc to LCD Blacklight. if you need to change please see on picture

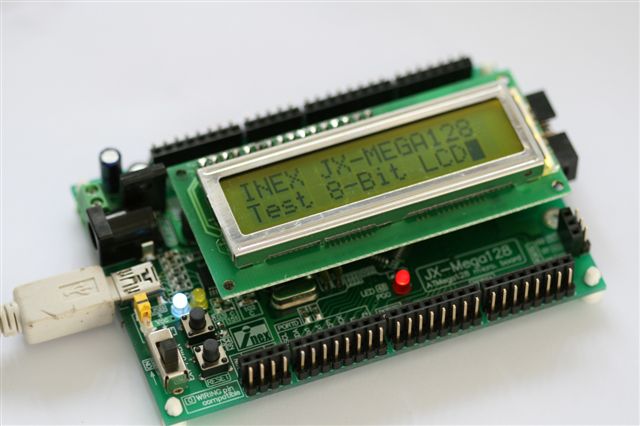

Update November 1,2008 .On Board configure the Port A as PA0... PA7 connect to line D0-D7 of LCD and Port D as PD5(EN). PD6(RW).PD7(RS), The board have 2 choie interface 2 mode (4 bit and 8 bit) interface The example code i have 2 zip for test. LCD 4 Bit interface and LCD 8 Bit interface

testing

Example 2 : connect to DS1820 Display Temperature ,Download source code for study The port PB7 Connect to 1 wire interface DS1820. For 1 Wire Pin just to pull up resistor 4.7 K Ohm to VCC

DS1820

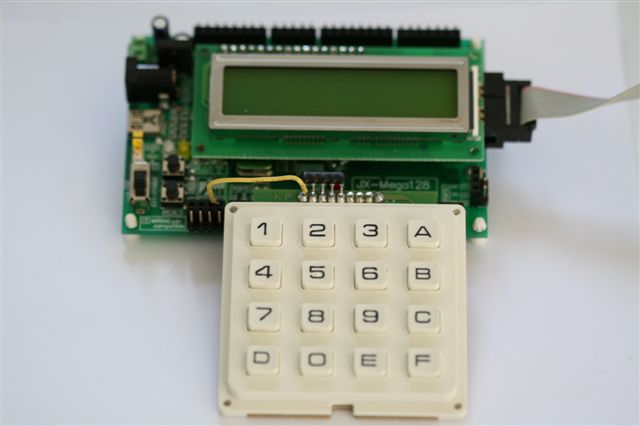

Example 3 : connect to key Board 4*4 . The IO Port Connect to Port C and PC0, PC1, PC2, PC3 as colume just to pull up Resistor 10 K Ohm to VCC and PC4,PC5,PC6,PC7 as row scan. testing reading the state of key and display the result to lcd,

KEY & LCD

Example 4 : Now I have tools for lcd,,, you can copy my function to your project

function 1 : The Function for Display, you have 3 choice to display, Display Left, right hand or center on lcd.

function 2: if you need to define some symbol on lcd ,,, I have example for you, Code

Symbol

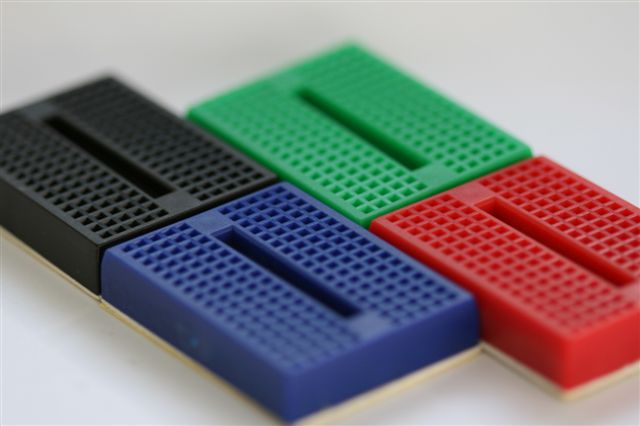

ฺButifull ProtoBoard , If you need to buy, could you please contact to www.warf.com

Sorry, My english not strong....

J.nut
